3000 UST EXTRUSION PRESS

MANUFACTURING FACILITY

OSE Industries L.L.C. is equipped with cutting-edge technologies, including three high-capacity aluminium extrusion press lines, a flux coating line, and advanced quality assurance systems.

EXTRUSION PRESSES Lines

1800 UST Extrusion Press

2750 UST & 3000 ust Extrusion Press

2750 UST & 3000 ust Extrusion Press

Capabilities:

  • Extrusion of Precision Industrial Profiles and Multiport Extruded (MPE) Tubes.

Features:

  • Induction billet heater and advanced water quenching system for excellent surface finish and product quality.

Products:

  • Industrial Profiles in grades AA 6060, AA 6063, AA 6005, AA 6061, AA 6082, available in T4, T5, T6, T66, or customized heat treatments.
  • MPE Tubes in grades AA 1100, AA 1197, AA 1050, AA 3102, AA 3003 and customized alloys.

2750 UST & 3000 ust Extrusion Press

2750 UST & 3000 ust Extrusion Press

2750 UST & 3000 ust Extrusion Press

Capabilities:

  • Specialized in the extrusion of MPE Tubes for condenser coils and other automotive and domestic applications.

Applications:

  • MPE Tubes are utilized in condensers, intercoolers, oil coolers, evaporators, and battery cooling systems.

Features:

  • Equipped with advanced zinc coating systems for zinc coated MPE Tubes.

Products:

  • MPE Tubes in grades AA 1100, AA 1197, AA 1050, AA 3102, AA 3003 and customized alloys.


flux coating line

Fully equipped to produce flux-coated tubes using different flux materials, including:

  • Pre-Flux
  • Zn-Flux
  • Si-Zn-Flux

CUT TO LENGTH LINES

Fully equipped to produce flux-coated tubes using different flux materials, including:

  • Pre-Flux
  • Zn-Flux
  • Si-Zn-Flux

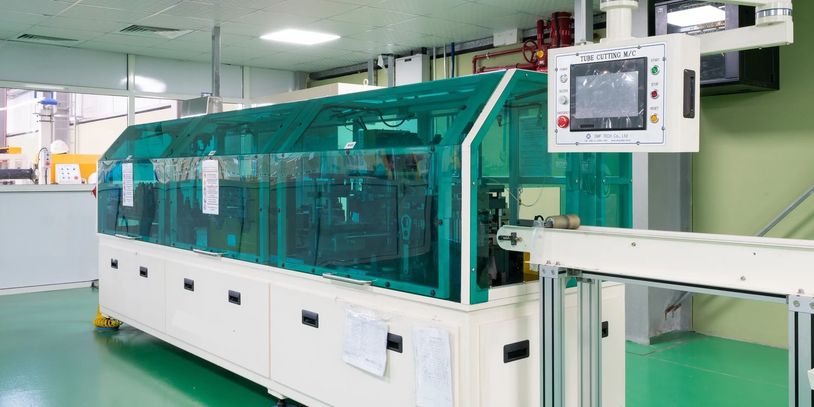

Cut-to-Length Lines:

  • Precision cutting lines that can cut MPE Tubes to lengths ranging from 100 mm to 3,000 mm.
  • Integrated with poka-yoke systems and sensors for high-quality assurance.

ONLINE DETECTION SYSTEMS

Fully automated defect detection and rejection systems ensure high level of product conformity.

eddy current testing

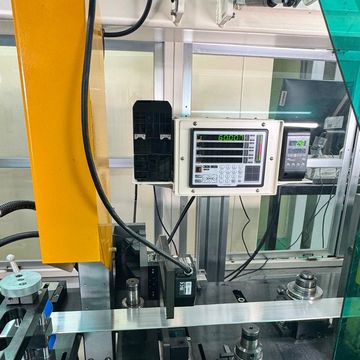

Width & Height Sensors

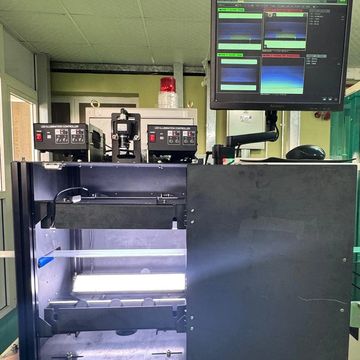

Vision System

Laboratory Facilities

XRF machine for measurement of zinc coating weight and thickness

Comprehensive testing and quality control capabilities, including:

  • Dimensional measurements, surface coating analysis, and surface texture verification.
  • Support in new product development, process optimization, and root cause analysis.


All equipment are calibrated as per ISO 17025 requirements.
